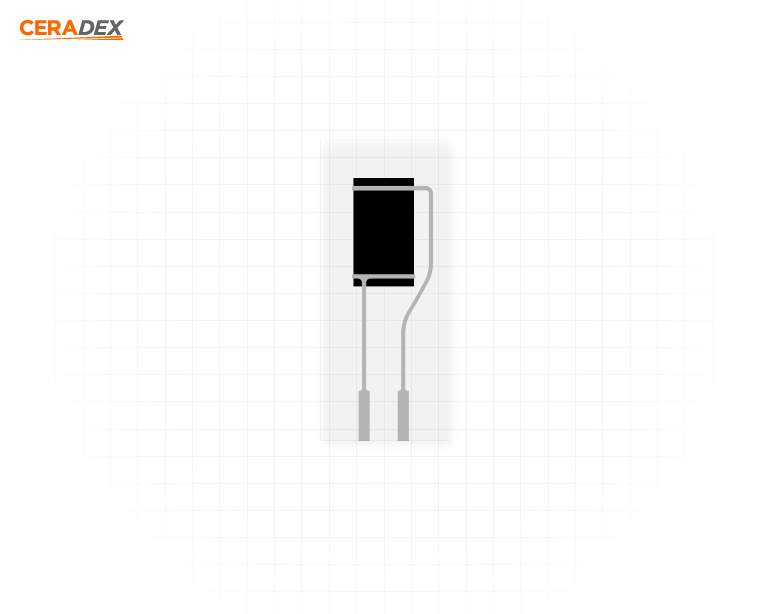

Printed Temperature Sensor
TSX1
TSX1 senses temperature changes through resistance variation, making it suitable for surface temperature monitoring and thin-profile integration. For designs that require flat-surface attachment, limited installation space, or thermal change observation, TSX1 offers a practical temperature sensing solution.
- Sensor Type: Resistive temperature sensor
- Active Area: 10mm x 8mm
- Actuation Temperature: ≤ 20°C
- Nominal Thickness: 0.52 mm
- Sensr Length: 40mm
Characteristics
- Sensing Temperature: 20~60°C
- Operating Temperature: -20~80°C
- R/R0-T Curve: < ±10%
Durability
- Low Temperature Storage: -40°C x 5 hr
- High Temperature Storage: 85°C x 5 hrs
- Thermal Shock: -40~85°C / 30 min each / >150 cycles
- High Humidity: 60°C / 90%RH / 5 hrs
Safety
- Maximum Driving Power: < 240mW
- Electromagnetic interference (EMI): No
- Electrostatic Discharge (ESD): No
